KCMAQS-T7

New
air quality sensor
● Air quality sensor, capable of detecting CO2, temperature, humidity TVOV, PM1.0, PM2.5, and PM10485 interfaces
● The temperature and humidity sensors, as well as the PM2.5 sensor, use independent sensors for higher accuracy
● Adopting the standard Modbus RTU communication protocol
● Powered by DC 9V-30V
● Installation using standard 86 bottom box

KTEC2208

● KNX/EIB dedicated bus

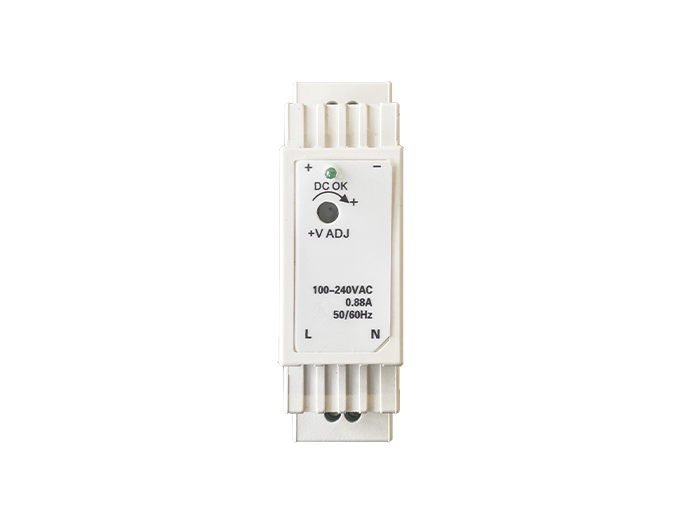

KTS-12P

● 12V output switch power supply
● Output current is 1A

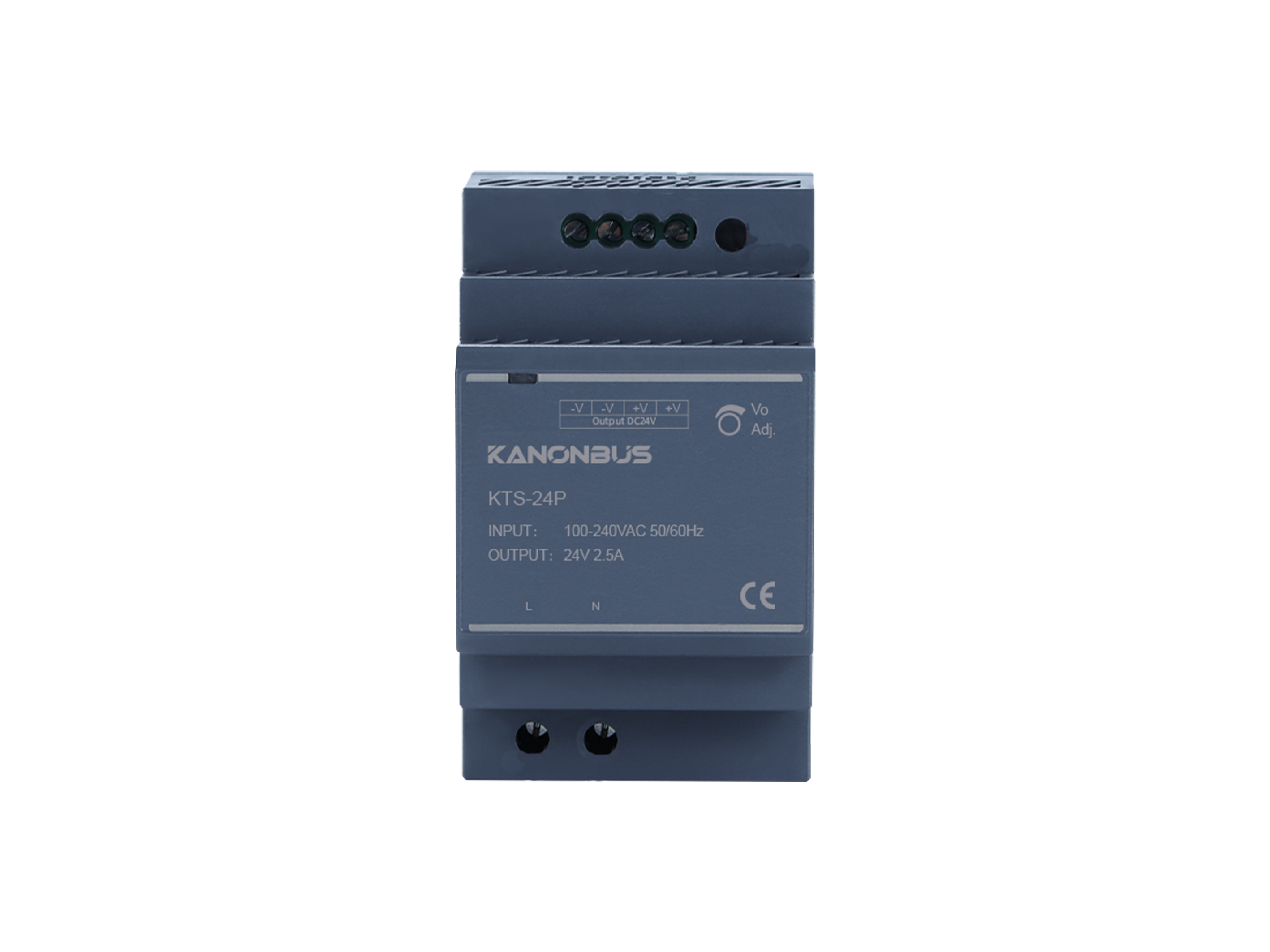

KTS-24P

● 24V output switch power supply
● The output current is 2.5A

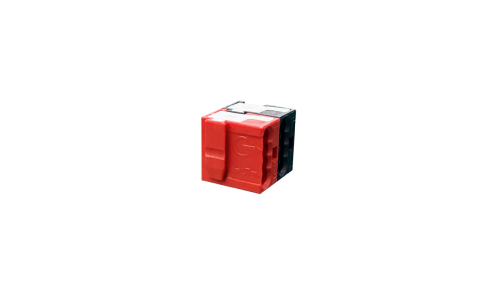

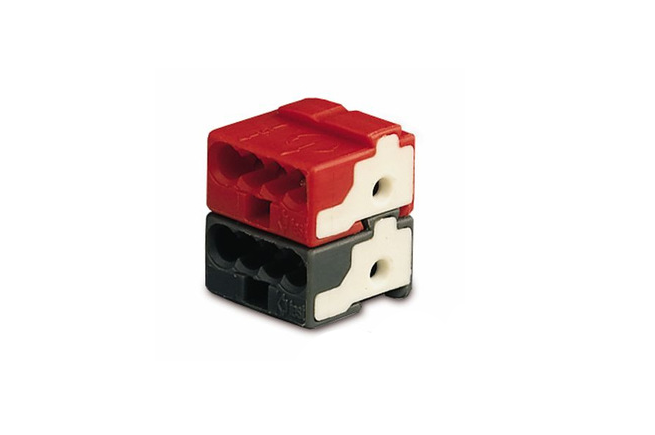

KTEBLOCK

● KNX/EIB dedicated terminal

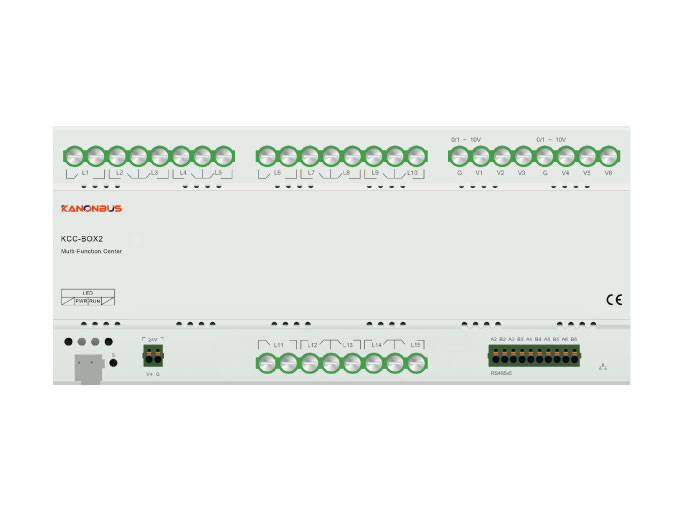

KCC Host KCC-BOX2

New
Ordinary central control host
● Ordinary central control host, 5 485 interfaces, 1 reusable network interface
● 15 ways of opening and closing, including 3 ways of 16A high load, 12 ways of 10A light load, and 6 ways of 0/1-10v output
● KCC solutions can be integrated with multiple control units, supporting KNX IP Router and P2P modes
● Can be applied to hotel rooms, small apartments, conference rooms, and other projects
● 24V auxiliary power supply required

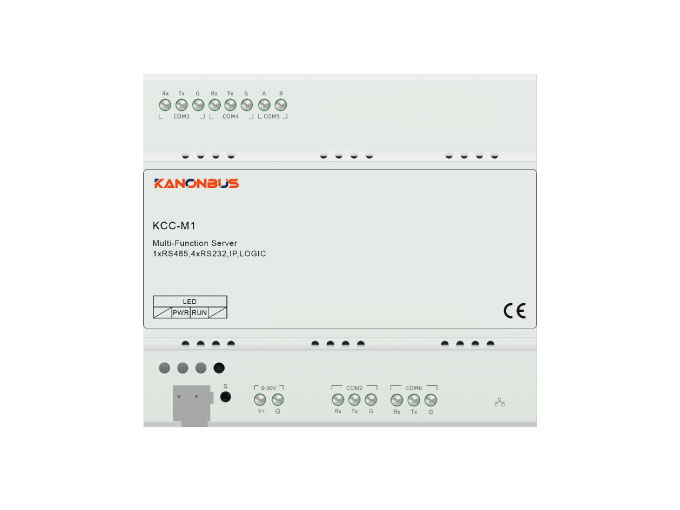

KCC Host KCC-M1

New
Audio and video system host
● High end home audio and video host, 1 RS485 interface, 4 RS232 interfaces, and 1 reusable network interface
● A dedicated home theater app that provides excellent audiovisual experience
● Centralized control of home theater equipment, such as players, projectors, amplifiers, etc
● 9-30V auxiliary power supply required

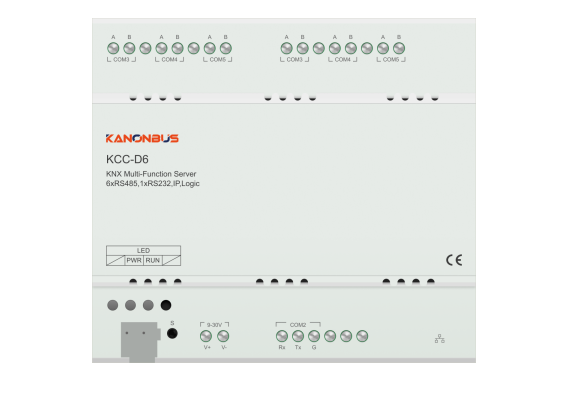

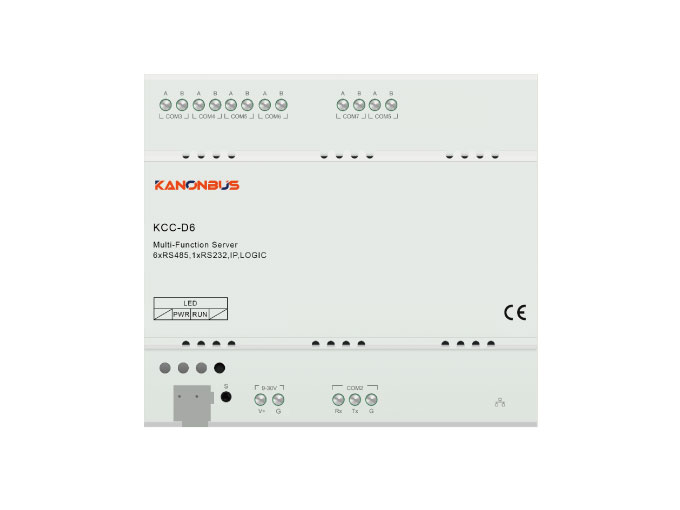

KCC Host KCC-D6

New
KCC host
● 6 485 interfaces, 1 232 interface, and 1 reusable network interface
● Logic control, voice control, remote control, visualization app, supporting KNX IP Router and P2P mode
● Can be integrated with conference/central control system/BA/BMS
● Can be integrated with central air conditioning, underfloor heating, fresh air, home theater, background music and other systems
● Can be integrated with security alarm and access control systems, supporting remote debugging and configuration
● The docking protocol supports standard Modbus RTU/TCP, BACnet/IP, custom RS232/RS485, TCP/IP or UDP, etc
● 9-30V auxiliary power supply required
● Mainly used for integration between non KNX systems and third-party devices

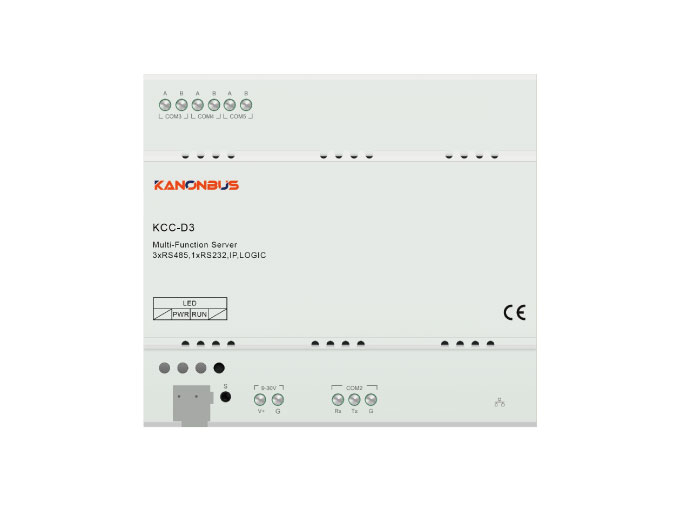

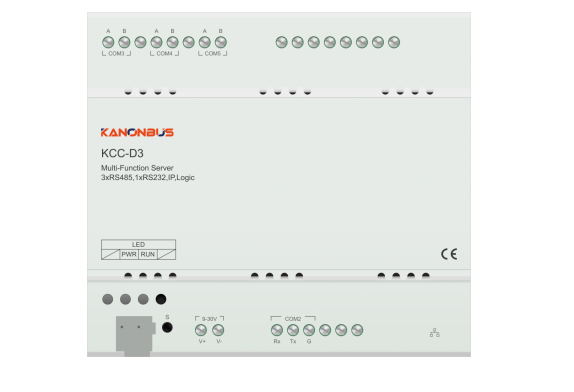

KCC Host KCC-D3

New
KCC host
● 3 485 interfaces, 1 232 interface, and 1 reusable network interface
● Logic control, voice control, remote control, visualization app, supporting KNX IP Router and P2P mode
● Can be integrated with conference/central control system/BA/BMS
● Can be integrated with central air conditioning, underfloor heating, fresh air, home theater, background music and other systems
● Can be integrated with security alarm and access control systems, supporting remote debugging and configuration
● The docking protocol supports standard Modbus RTU/TCP, BACnet/IP, custom RS232/RS485, TCP/IP or UDP, etc
● 9-30V auxiliary power supply required
● Mainly used for integration between non KNX systems and third-party devices

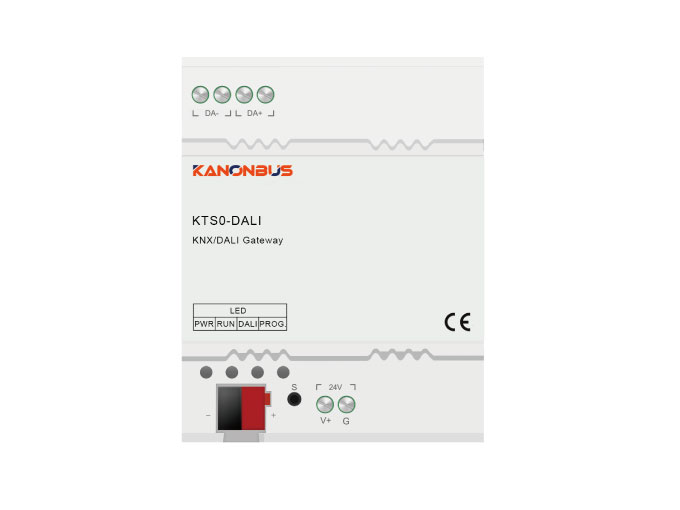

KNX Gateway KTS0-DALI

New
KNX DALI Gateway
● Single channel, supports 64 DALI ballasts, 16 groups, supports RGB/RGBW
● Supports DALI2.0 and DT8, with bus short circuit detection function, capable of detecting faults in ballasts and lighting fixtures
● Equipped with overall control function, it can control all lighting fixtures on the DALI bus, including on/off, brightness, color temperature, etc
● The corresponding group address relationship has been integrated and can be used without assigning a group address
● 24V auxiliary power supply required

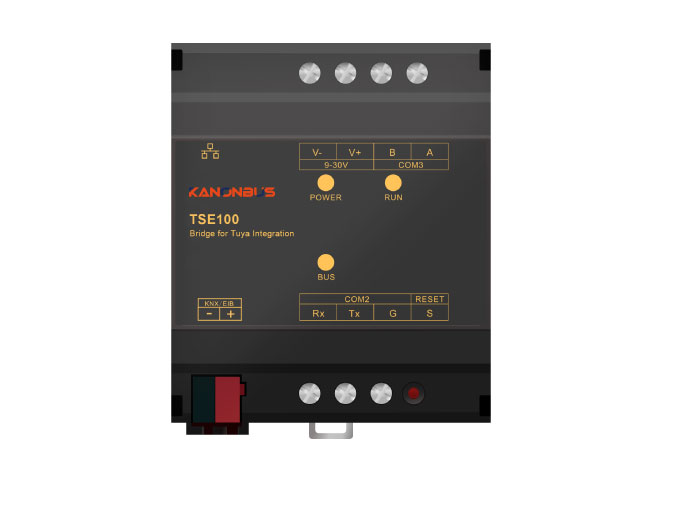

KNX Gateway TSE100

New
TUYA Graffiti Ecological Gateway
● With multiple connection methods, it can link the wireless system of graffiti with all wired systems, achieving seamless integration of wired and wireless
● You can choose one 485 interface, one 232 interface, one reusable network interface, or one KNX interface. Choose one from four interfaces
● Supports various wired systems including KNX, Legrand, Philips, Luchuang, air conditioning, underfloor heating, and fresh air, as well as graffiti panels, crow lamps, graffiti sensors, graffiti apps, Schneider wireless, ABB wireless, and other wireless connection methods, ultimately achieving a great integration of wired and wireless
● Need to be used in conjunction with graffiti wireless access points

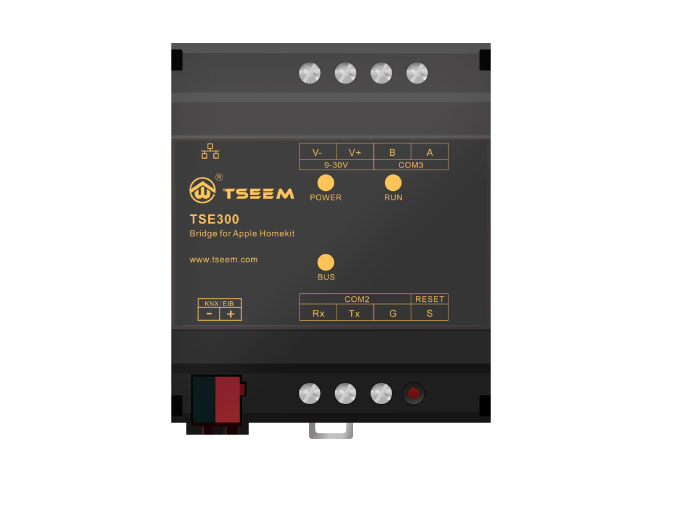

KNX Gateway TSE300

New
Apple Homekit Apple Ecological Gateway
● Apple HomeKit Apple Bridge, certified by Apple's official HomeKit and MFi
● One 485 interface, one 232 interface, one reusable network interface, or one KNX interface can be selected, with 4 interfaces to choose from
● 9-30V auxiliary power supply required

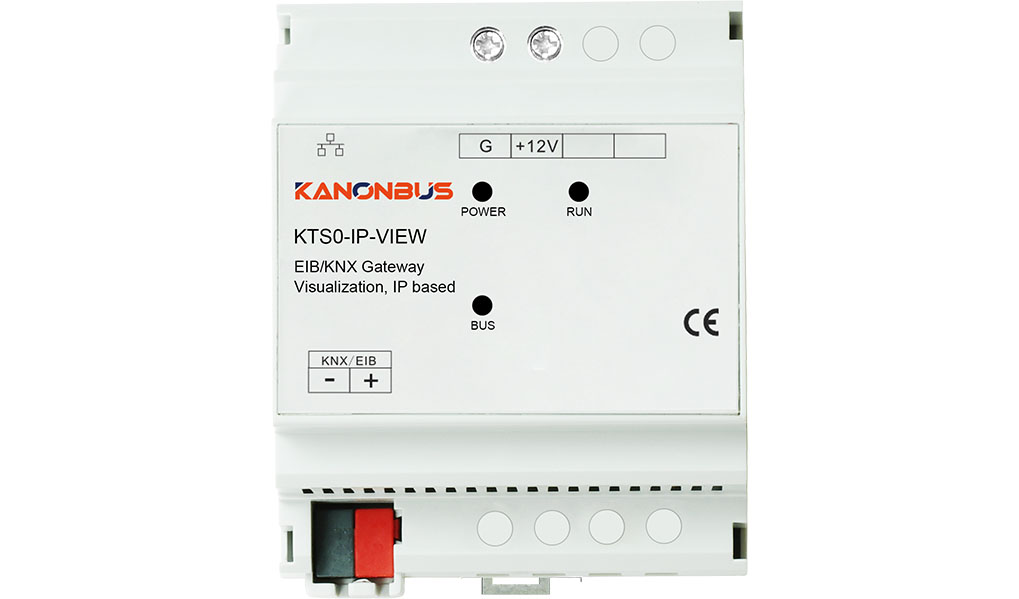

KNX Gateway KTS0-IP-VIEW

New
KNX APP Gateway
● Visual APP gateway, supporting Android and Apple systems, can be remotely controlled using WeChat mini programs
● Logic control, voice control, remote control, visualization app, supporting KNX IP Router and P2P mode
● Support control of lighting, underfloor heating, air conditioning, audio and video, backend timing, strategies and various logics, IP camera monitoring and video retrieval
● 9-30V auxiliary power supply required

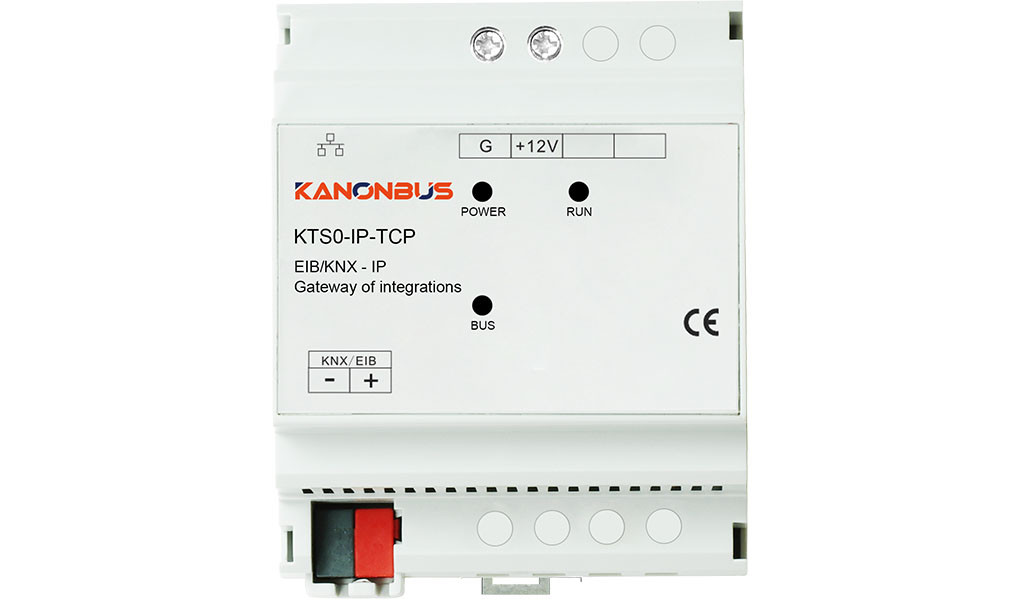

KNX Gateway KTS0-IP-TCP

New
KNX TCP Server Gateway
● TCP gateway, integrated with third-party software as an IP data interface
● Supports KNX IP Router and P2P mode
● 9-30V auxiliary power supply required

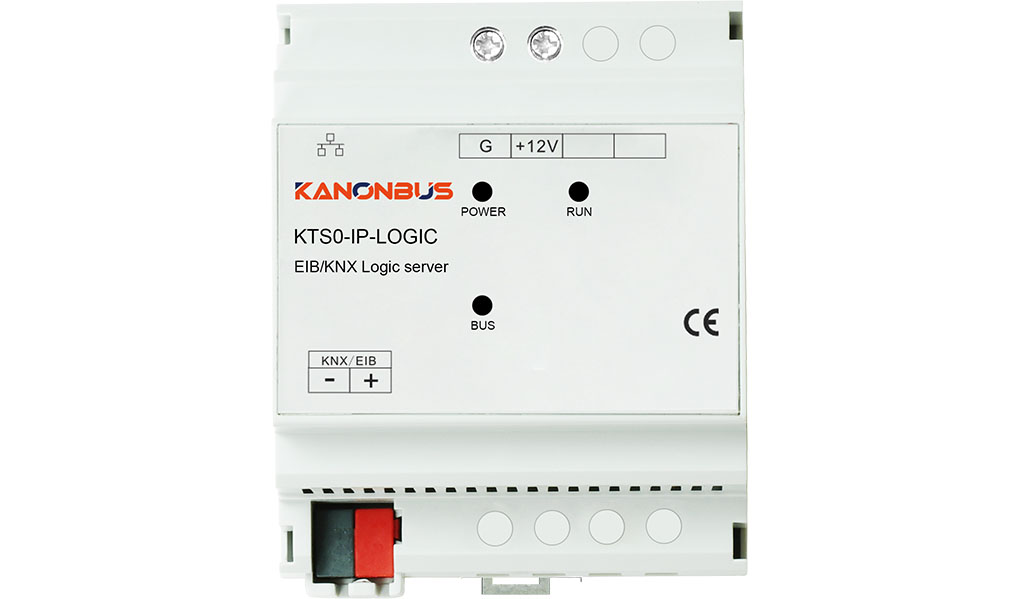

KNX Gateway KTS0-IP-LOGIC

New
KNX timing/logical gateway
● Logical gateway, supporting backend timing, strategy, and various logical functions
● Supports KNX IP Router and P2P mode
● 9-30V auxiliary power supply required

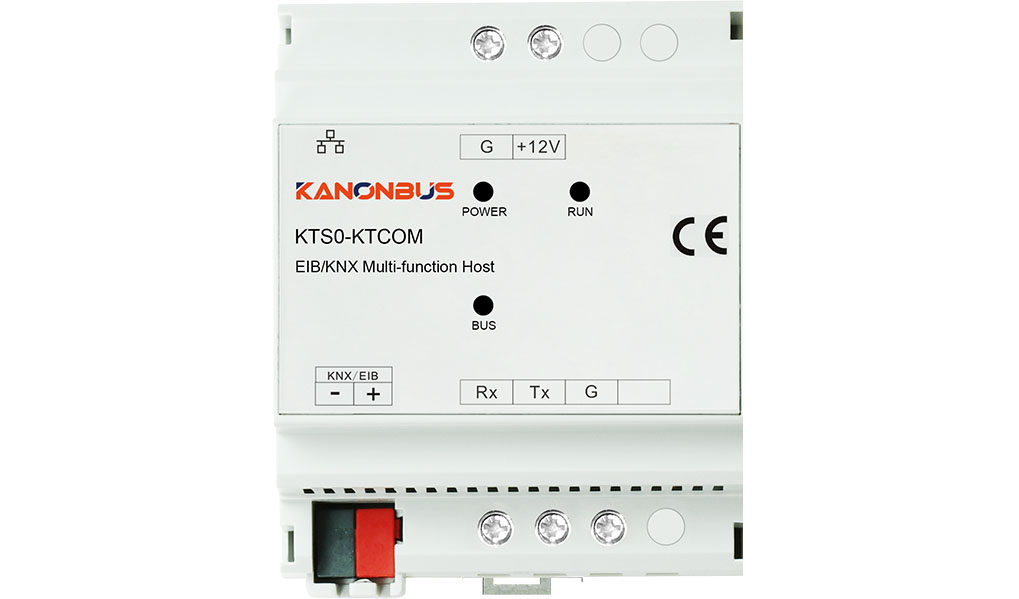

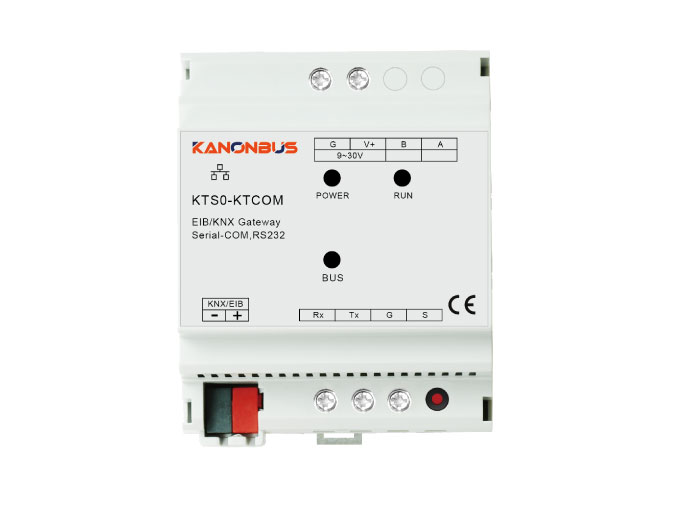

KNX Gateway KTS0-KTCOM

New
Serial server gateway RS232 version
● Serial server gateway RS232 version, supports serial port transparent transmission, does not support Modbus
● 1 232 interface, logic control, can be used for user-defined bidirectional serial port code or KTS serial port transparent protocol
● Unrestricted number and byte length of serial port codes
● 9-30V auxiliary power supply required

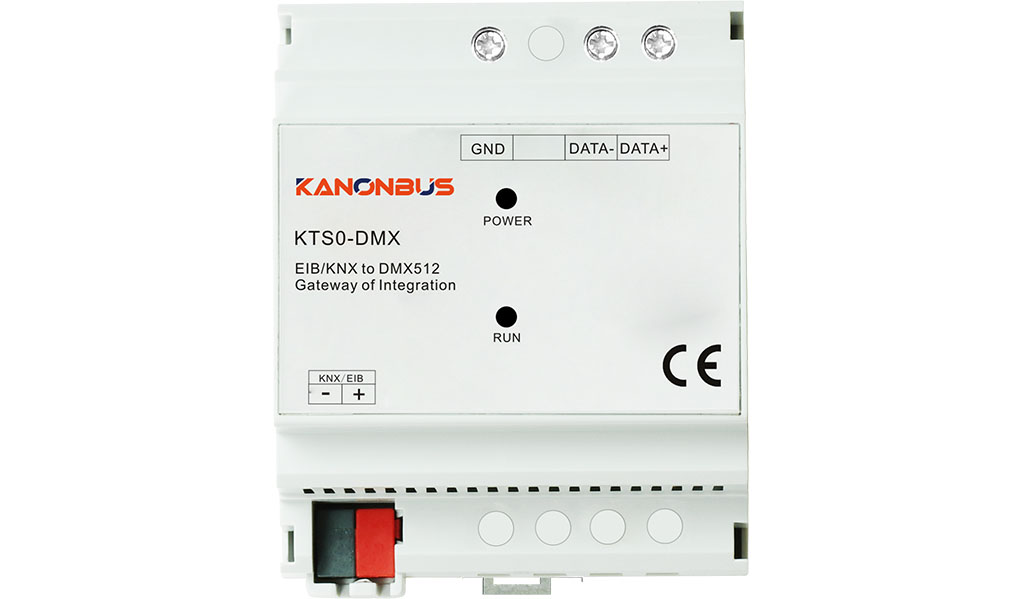

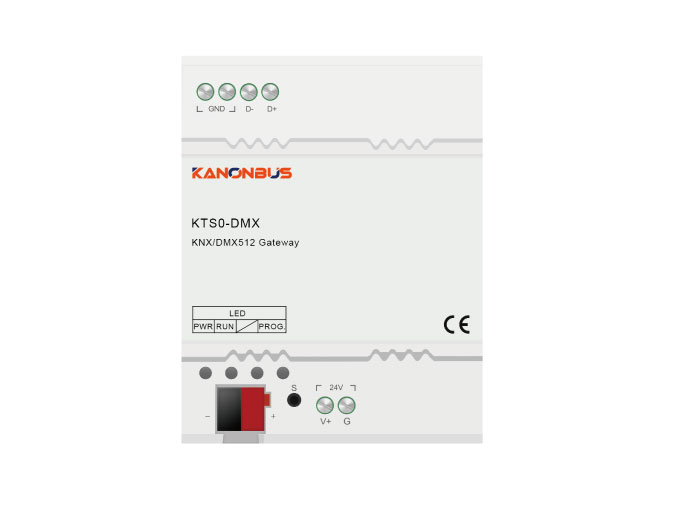

KNX Gateway KTS0-DMX

New
DMXgateway
● DMA gateway, 1xDMX512 interface, supports 255 channel switches and dimming
● Supports 6 scenes, with a maximum of 64 channels per scene. The scene transition time can be set accordingly
● 24V auxiliary power supply required

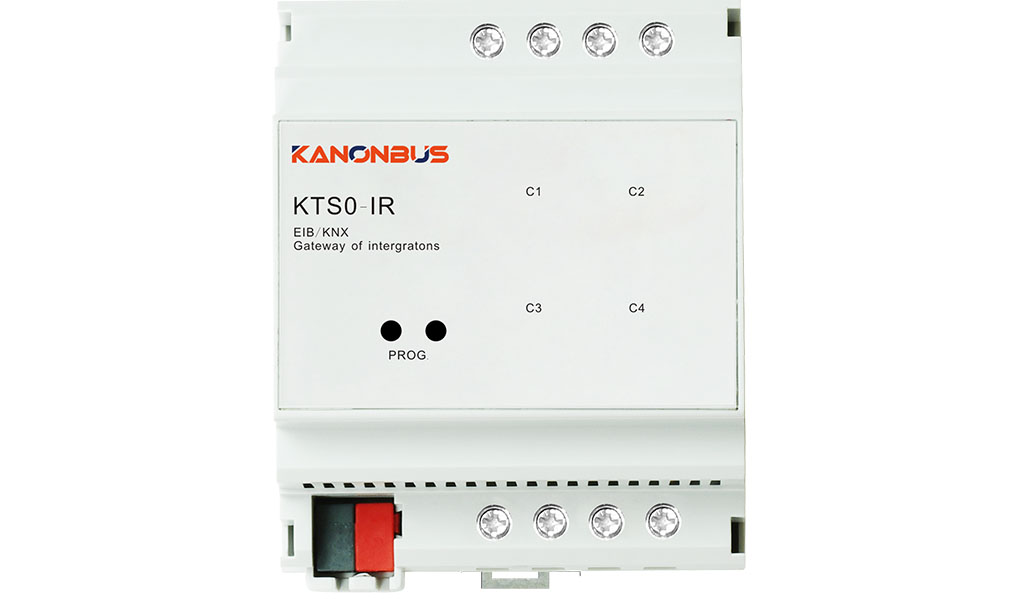

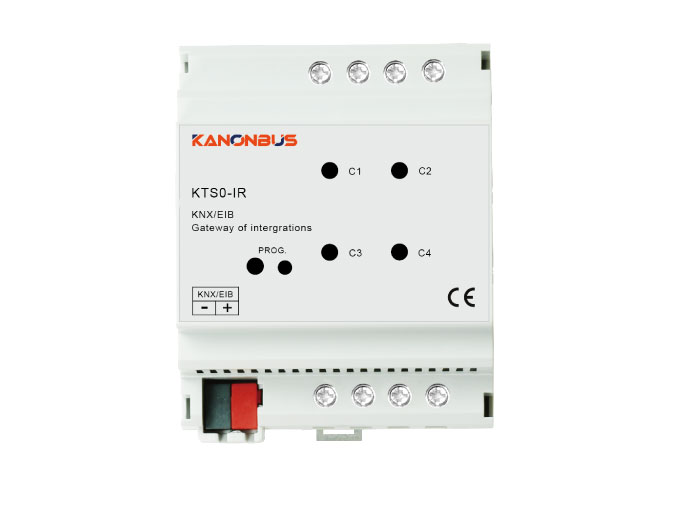

KNX Gateway KTS0-IR

New
KNX infrared gateway
● Infrared gateway, 4 IR transmission channels+1 IR learning channel
● Each channel supports a maximum of 100 infrared commands and supports the full frequency range of 20kHz~75kHz
● Can use ETS or RS485 interface to learn and transmit infrared signals
● With scene functionality, it enables one click simultaneous sending of different infrared commands to different channels

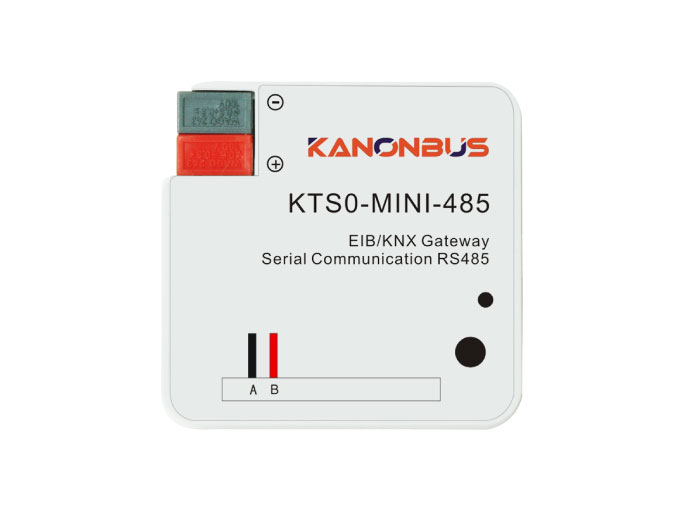

KNX Gateway KTS0-MINI-485

New
Small KNX/485 gateway
● KNX mini serial gateway, supporting 46 instructions
● The baud rate setting range for serial port data is 1200bps~115200 bps · The frame length of serial port data can be set
● The serial data frame can be set to use the same frame header and frame footer (2 bytes each), so that the length of a single data frame can reach 12 bytes
● The data frame supports bidirectional communication of KNX<->RS485
● Supports hexadecimal and ASCII code commands (requires conversion to decimal)

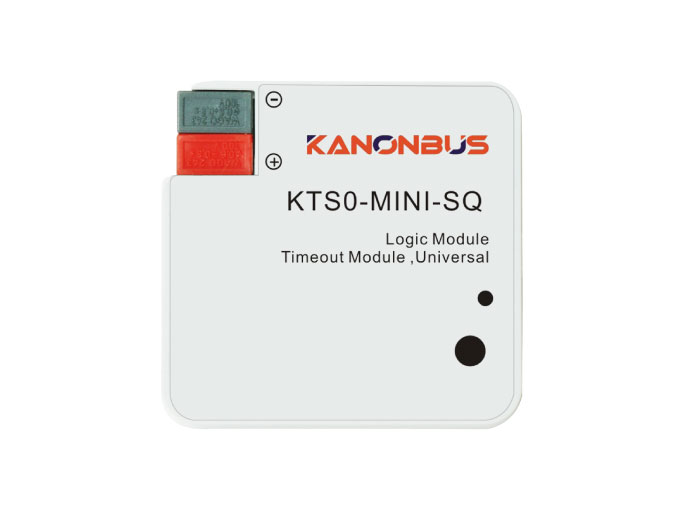

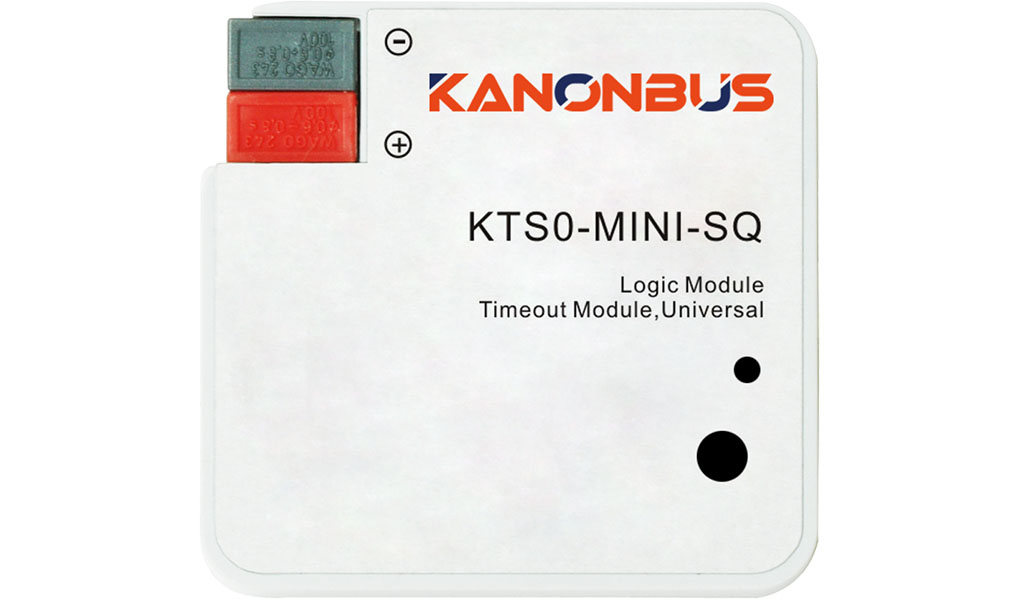

KNX Gateway KTS0-MINI-SQ

New
KNX Project Management Module
● KNX project management module, can trigger blocking instructions after timeout
● Equipped with automatic storage and memory function, the device will not affect the current timing function after power is restored
● Timing can be done in seconds/minutes/hours/days, with a minimum of 1 second and a maximum of 255 days

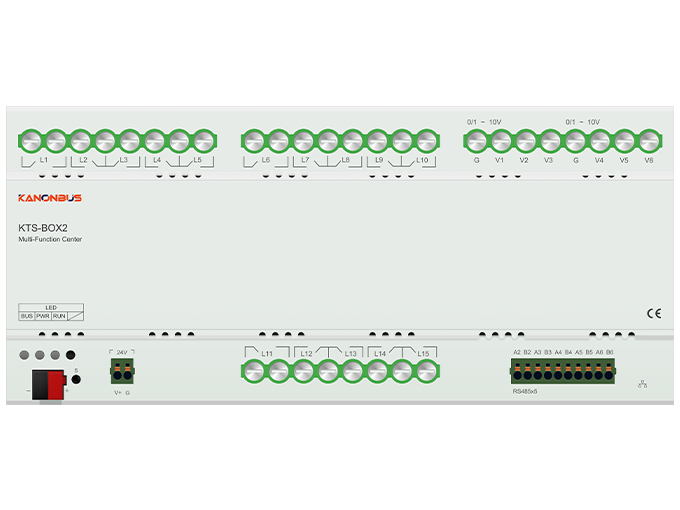

KNX Host KTS-BOX2

● KNX central control host, 5 485 interfaces, 1 reusable network interface, 1 KNX interface
● 15 circuit breakers, including 3 16A high-power loads, 12 10A lighting loads, 6 0-10V outputs, and support for pulling current/Charging current, compatible with all mainstream 0/1-10v dimming ballasts on the market, supporting KNX IP Router and P2P modes
● Can be integrated with air conditioning/underfloor heating/fresh air/background music/home theater/conference/central control/security/floor control systems, etc
● 24V auxiliary power supply required

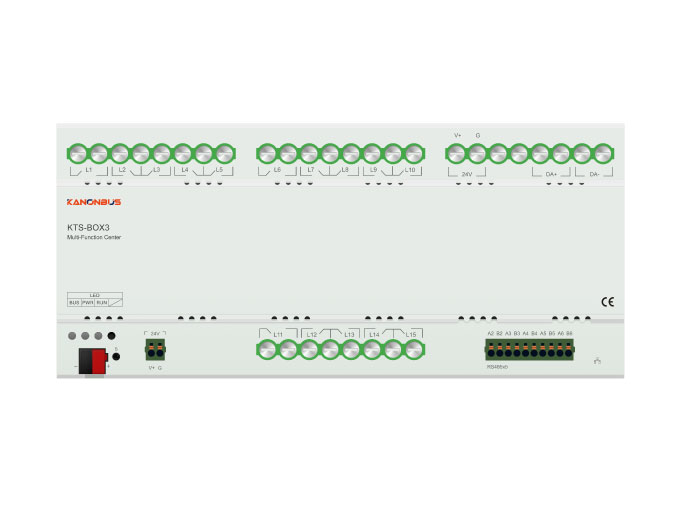

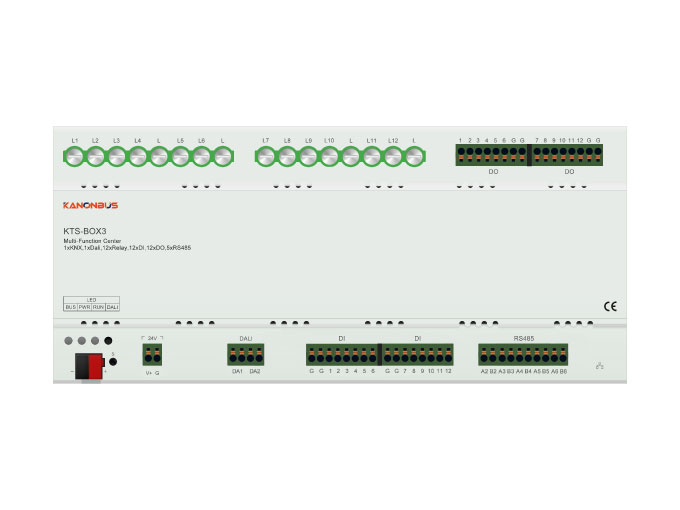

KNX Host KTS-BOX3

●KNX central control host, 5 485 interfaces, 1 reusable network interface, 1 KNX interface
●15 circuit breakers, including 3 16A high-power loads, 12 10A lighting loads, 1 DALI dimming output, supporting KNX IP Router And P2P mode
●Can be integrated with air conditioning/underfloor heating/fresh air/background music/home theater/conference/central control/security/floor control systems, etc
●24V auxiliary power supply required

KNX Host KTS-D6

New
KNX multifunctional host
● 6 485 interface, 1 232 interface, 1 reusable network interface, 1 KNX interface
● Logic control, voice control, remote control, visualization app, supporting KNX IP Router and P2P mode
● Can be integrated with conference/central control system/BA/BMS
● Can be integrated with central air conditioning, underfloor heating, fresh air, home theater, background music and other systems
● Can be integrated with security alarm and access control systems, supporting remote debugging and configuration
● The docking protocol supports standard Modbus RTU/TCP, BACnet/IP, custom RS232/RS485, TCP/IP or UDP, etc
● 9-30V auxiliary power supply required

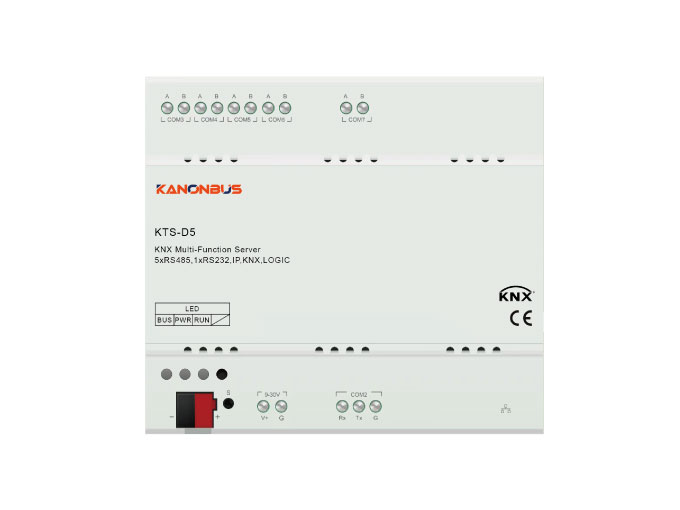

KNX Host KTS-D5

New
KNX multifunctional host
● 5 485 interface, 1 232 interface, 1 reusable network interface, 1 KNX interface
● Logic control, voice control, remote control, visualization app, supporting KNX IP Router and P2P mode
● Can be integrated with conference/central control system/BA/BMS
● Can be integrated with central air conditioning, underfloor heating, fresh air, home theater, background music and other systems
● Can be integrated with security alarm and access control systems, supporting remote debugging and configuration
● The docking protocol supports standard Modbus RTU/TCP, BACnet/IP, custom RS232/RS485, TCP/IP or UDP, etc
● 9-30V auxiliary power supply required

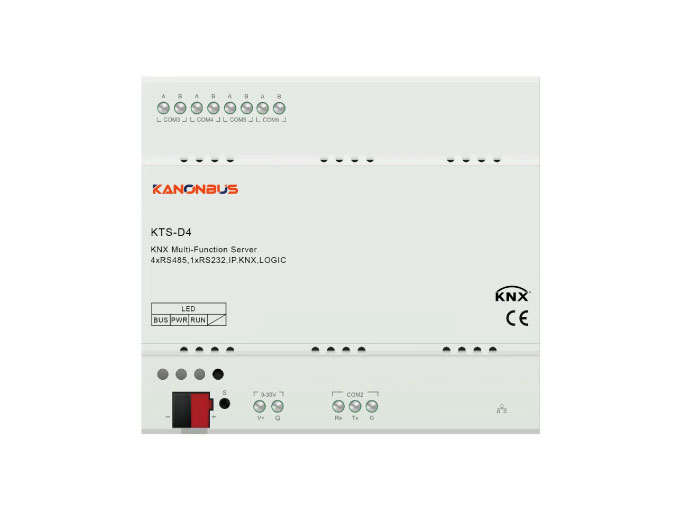

KNX Host KTS-D4

New
KNX multifunctional host
● 4 485 interface, 1 232 interface, 1 reusable network interface, 1 KNX interface
● Logic control, voice control, remote control, visualization app, supporting KNX IP Router and P2P mode
● Can be integrated with conference/central control system/BA/BMS
● Can be integrated with central air conditioning, underfloor heating, fresh air, home theater, background music and other systems
● Can be integrated with security alarm and access control systems, supporting remote debugging and configuration
● The docking protocol supports standard Modbus RTU/TCP, BACnet/IP, custom RS232/RS485, TCP/IP or UDP, etc
● 9-30V auxiliary power supply required

KNX Host KTS-D3

New
KNX multifunctional host
● 3 485 interface, 1 232 interface, 1 reusable network interface, 1 KNX interface
● Logic control, voice control, remote control, visualization app, supporting KNX IP Router and P2P mode
● Can be integrated with conference/central control system/BA/BMS
● Can be integrated with central air conditioning, underfloor heating, fresh air, home theater, background music and other systems
● Can be integrated with security alarm and access control systems, supporting remote debugging and configuration
● The docking protocol supports standard Modbus RTU/TCP, BACnet/IP, custom RS232/RS485, TCP/IP or UDP, etc
● 9-30V auxiliary power supply required

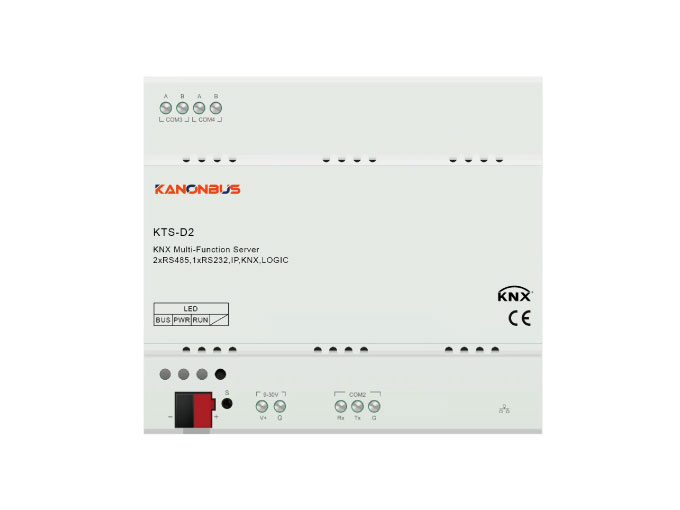

KNX Host KTS-D2

New
KNX multifunctional host
● 2 485 interface, 1 232 interface, 1 reusable network interface, 1 KNX interface
● Logic control, voice control, remote control, visualization app, supporting KNX IP Router and P2P mode
● Can be integrated with conference/central control system/BA/BMS
● Can be integrated with central air conditioning, underfloor heating, fresh air, home theater, background music and other systems
● Can be integrated with security alarm and access control systems, supporting remote debugging and configuration
● The docking protocol supports standard Modbus RTU/TCP, BACnet/IP, custom RS232/RS485, TCP/IP or UDP, etc
● 9-30V auxiliary power supply required

KNX Host KTS-D1

New
KNX multifunctional host
● 1 485 interface, 1 232 interface, 1 reusable network interface, 1 KNX interface
● Logic control, voice control, remote control, visualization app, supporting KNX IP Router and P2P mode
● Can be integrated with conference/central control system/BA/BMS
● Can be integrated with central air conditioning, underfloor heating, fresh air, home theater, background music and other systems
● Can be integrated with security alarm and access control systems, supporting remote debugging and configuration
● The docking protocol supports standard Modbus RTU/TCP, BACnet/IP, custom RS232/RS485, TCP/IP or UDP, etc
● 9-30V auxiliary power supply required

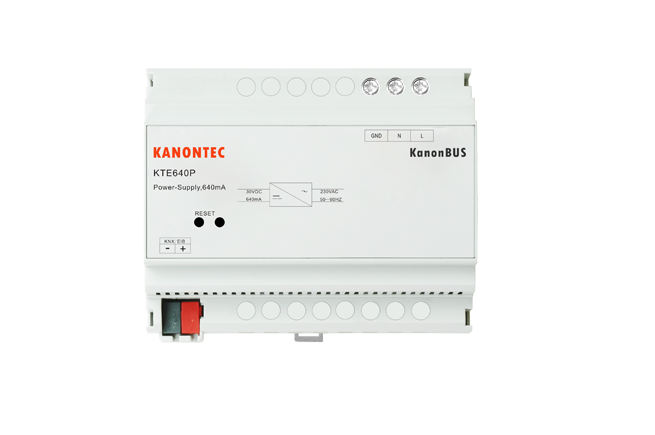

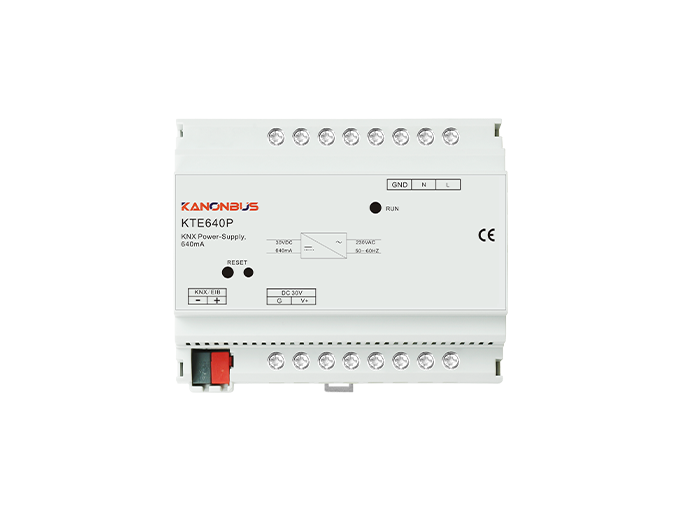

System module KTE640P

New
640mA power module
● The 640mA power module is a standard KNX system power supply equipment
● Built in choke
● High efficiency, approximately 85% effectiveness
● Equipped with short-circuit protection function, overload protection function, overheating protection function
● Equipped with a restart button and indicator light

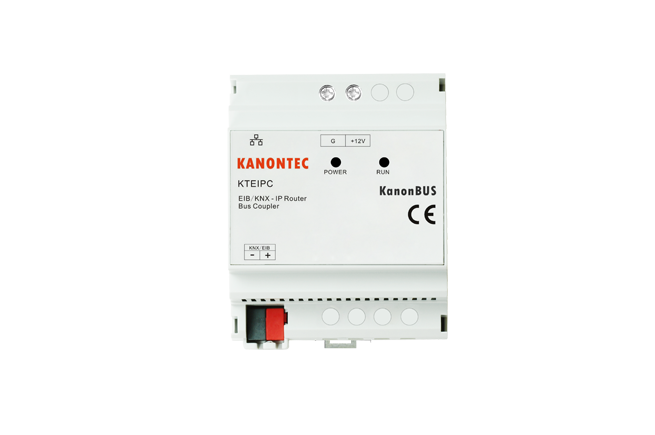

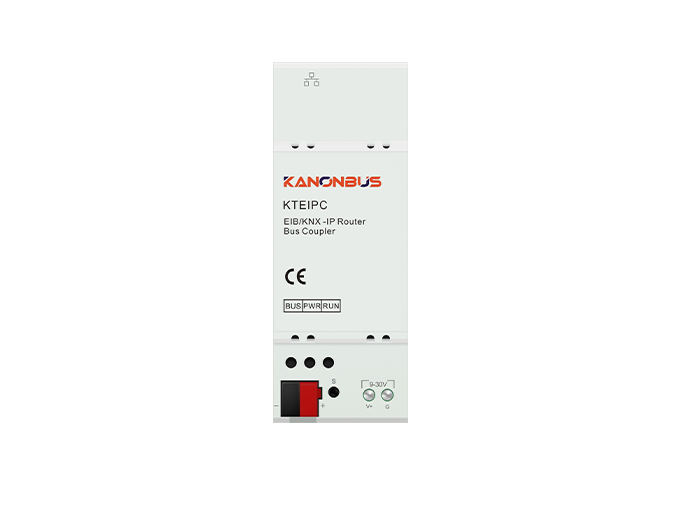

System Module KTEIPC

New
IP line coupler
● IP line couplers can connect to ETS through IP
● Can be used as a regional/line coupler
● Can be used as an IP router to improve KNX communication speed
● Equipped with filtering table function: supports filtering the first place of group addresses
● 9-30V auxiliary power supply required

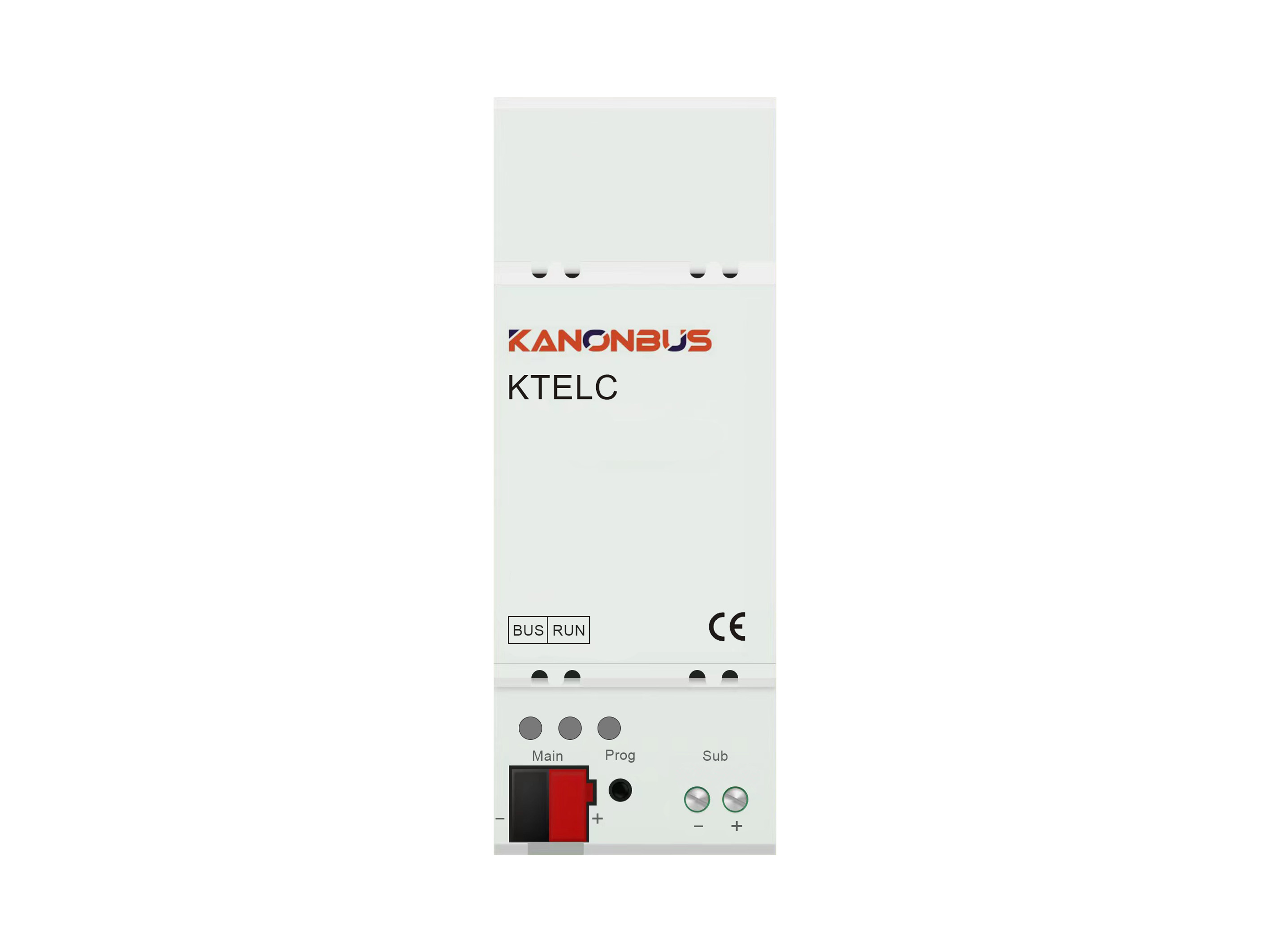

System Module KTELC

New
Branch coupler
● Can be used as a regional/line coupler
● With filtering function
● Powered by KNX bus

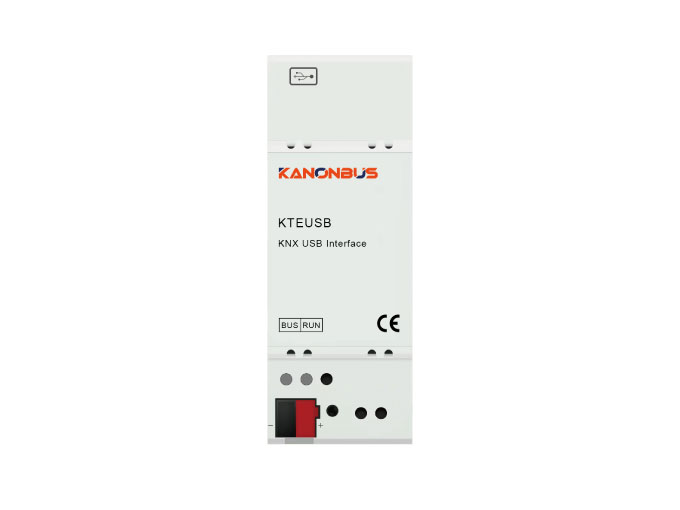

System module KTEUSB

New
KNX/USB data interface
● Using KNX bus for power supply
● Installation using DIN rail method
● No programming required, plug and play
● Equipped with connected LED indicator lights
● Equipped with standard USB Type-A interface

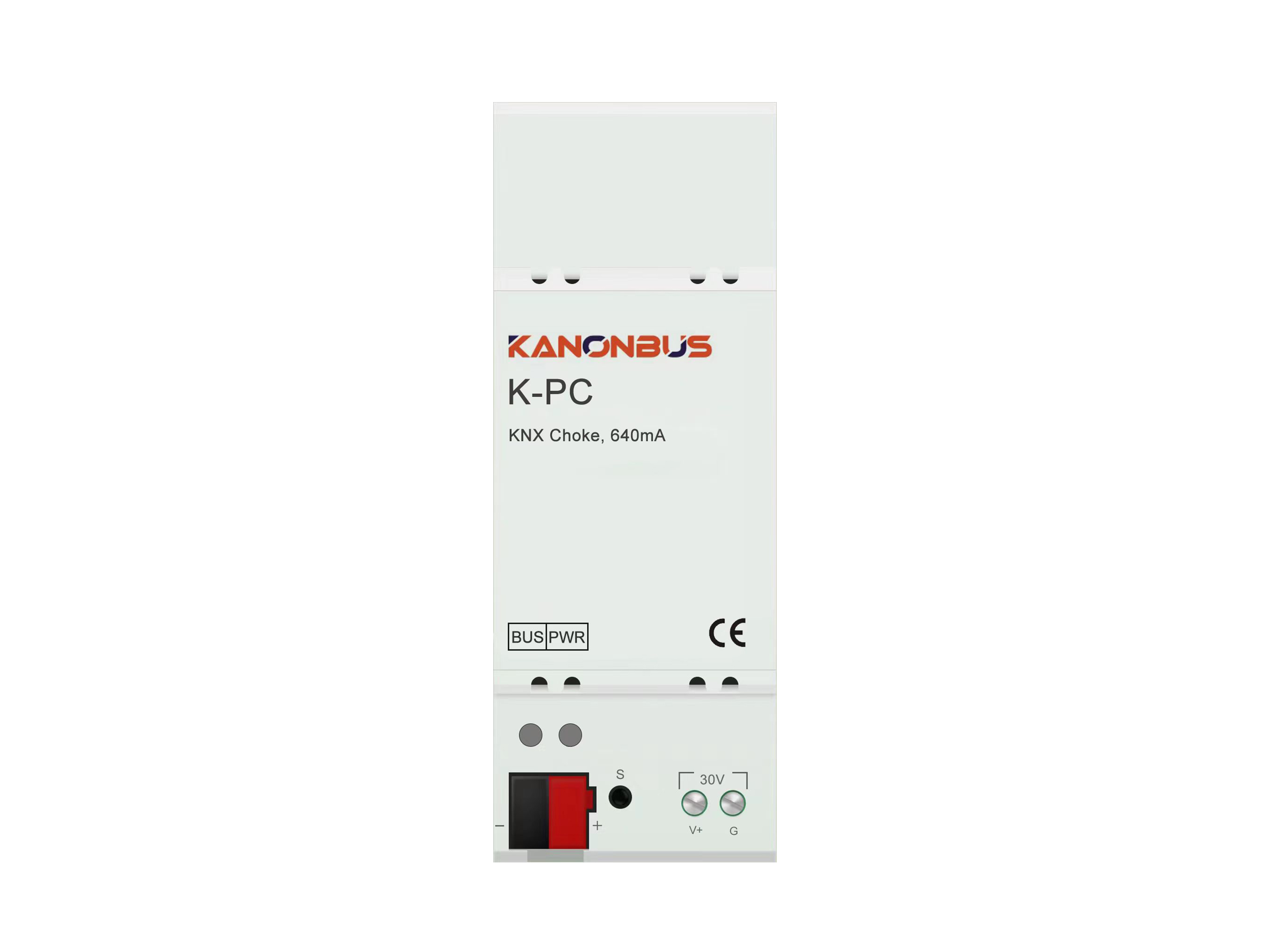

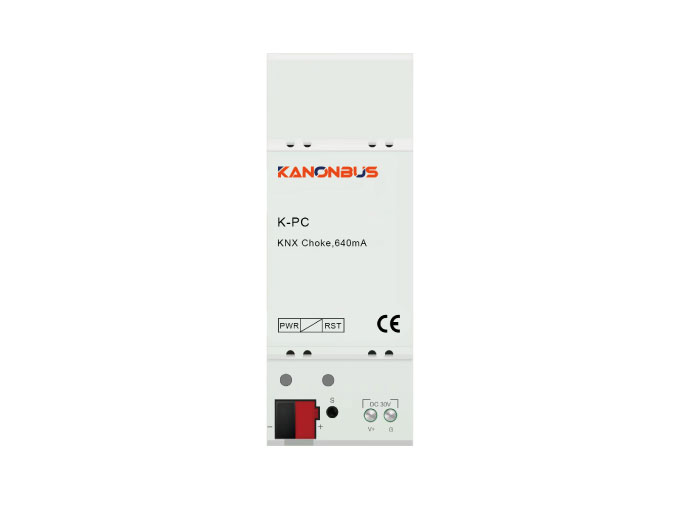

System module K-PC

● Input 24-30V DC power supply, output 640mA KNX power supply

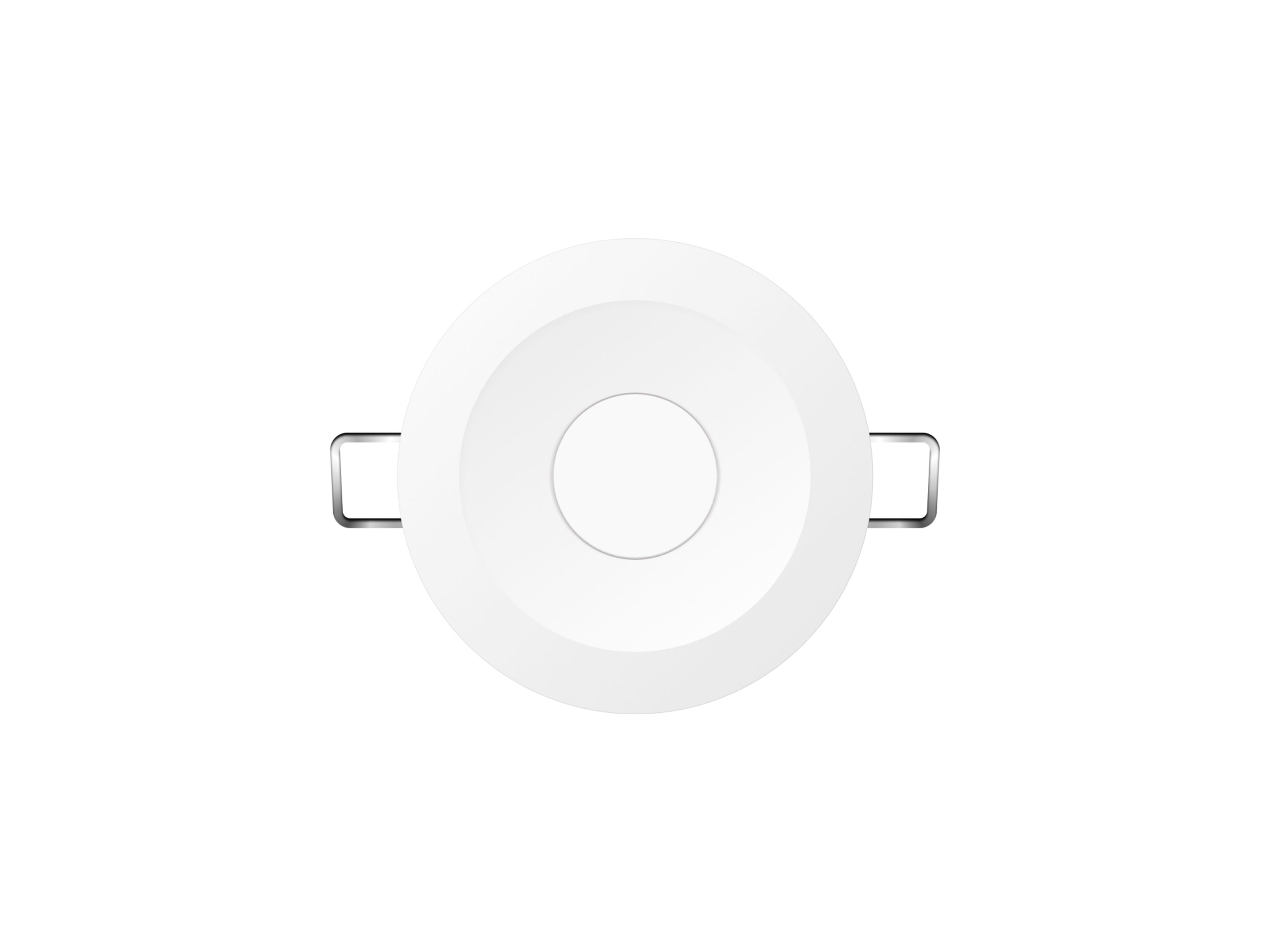

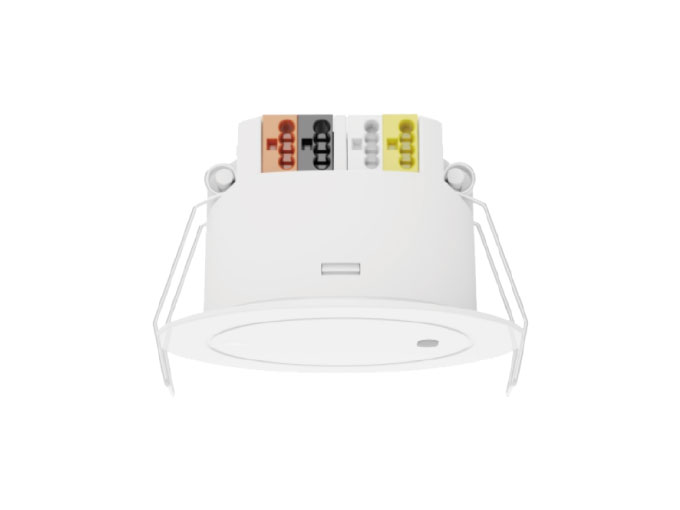

KNX sensor KTE1AS

New
Temperature and humidity sensors
● Equipped with KNX power supply and communication, capable of detecting temperature and humidity
● Adopting ceiling embedded installation method and calibrated by professional instruments
● Temperature measurement range: -40 ℃~85 ℃ · Humidity measurement range: 0%~100%
● Compact in size, with a diameter of 50mm. After installation, the visible thickness is only 6mm

KNX sensor KTEAQS-CO

New
Carbon monoxide sensor
● Using KNX power supply and communication, detectable carbon monoxide
● Adopting ceiling embedded installation method and calibrated by professional instruments
● Measurement range: 0-1000ppm · Compact volume, diameter 50mm
● After installation, the visible thickness is only 6mm

KNX sensor KTEAQS-T3

New
KNX air quality sensor
● Equipped with KNX interface
● Supports temperature, humidity, and PM2.5
● 24V auxiliary power supply required

KNX sensor KTEAQS-T7

New
KNX air quality sensor
● Equipped with KNX interface
● Supports temperature, humidity PM1.0、PM2.5、PM10、 Formaldehyde, CO2, and TVOC
● 24V auxiliary power supply required

KNX sensor KTE2MLS-W2

New
Wall mounted mobile sensor
● Wall mounted mobile sensor with constant illumination function, 86 bottom box installation, default color is white
● The maximum detection distance can reach 8 meters, and the delay time and brightness threshold can be set
● Can enable/disable human body sensing function · Can enable/disable constant illumination function
● The constant illumination control function can be activated through human body induction

KNX sensor KTE2MLS-T

New
Ceiling mounted mobile sensor
● Ceiling mounted mobile sensor with constant illumination function, embedded in ceiling/86 bottom box installation
● The default color for infrared detection is white, with master-slave control and illumination detection function
● The maximum detection distance can reach 8 meters
● Suitable for corridors, elevator halls, bathrooms, and other places

KNX sensor KTE2MLS-T2

New
Ceiling mounted mobile sensor
● Ceiling mounted mobile sensor with constant illumination function, embedded installation in ceiling, compact size
● The default color for infrared detection is white (maximum detection distance can reach 5 meters)
● Equipped with master-slave control and illumination detection functions
● Suitable for places such as foyers, corridors, elevator lobbies, bathrooms, changing rooms, etc

KNX sensor KTE2MLS-T3

New
Ceiling mounted presence sensor movement sensor
● Human presence sensor with constant illumination function, embedded installation on ceiling, supporting both exposed and concealed installation
● Maximum sensing range: diameter 6-8 meters
● Internationally applicable 24GHz ISM frequency band millimeter wave radar for static detection of breathing in vivo
● Realize manned/unmanned switching within 0.5 seconds, requiring 24V power supply
● Suitable for offices, meeting rooms, and other places

Fan coil module KTE2F

New
Two pipe fan coil drive
● Two pipe fan coil drive
● Mainly used for intelligent control of two pipe fan coil system
● Can turn on/off the "automatic control" function
● Automatically calculate temperature difference based on acceptable ambient temperature and set temperature
● Can automatically control valve opening/closing based on temperature difference
● Automatically control wind speed based on temperature difference
● Temperature difference for automatic operation with adjustable wind speed
● The wind speed switching time can be set to support cold and frost protection
● The minimum operating time for the initial wind speed can be set to ensure the torque of the fan
● Can set the initial wind speed when turning on the fan coil unit

Curtain module KTE4HPC

New
4-way universal curtain driver
● Implement actions such as opening/closing the motor load through the KNX protocol
● Using KNX bus for power supply
● Need DC24V auxiliary power supply for power supply
● 4 independent output channels
● With status feedback function for opening/closing
● Equipped with position control and status feedback functions
● The interval between opening and closing curtains can be set to maximize the protection of the curtain motor
● With scene functionality, each channel supports up to 8 sets of scene definitions
● Each circuit can be individually set with relevant parameters
● Manually control the opening/closing/stopping of each circuit
● Each circuit has an independent status display
● Supports strong current motors and dry contact motors

Input module KTE824I

New
8-way 24V active input module
● 8-way 24V active input module, rail installation, can be linked with the fire protection system or connected to other systems
● Featuring 8 independent channels for individual control
● Capable of light control: opening/closing/dimming. Curtain control: opening/closing
● Can send numerical values: scene call/brightness value/temperature value/illuminance value
● Can be linked with the fire protection system to control the KNX system, and can be integrated with other system terminals or equipment hosts

Input module KTE8UP

New
8-channel universal input module
● 8-way universal input module, embedded installation method, can be concealed in the switch bottom box
● Compact in size and powerful in functionality, making it easy to apply in various usage scenarios
● Capable of light control: opening/closing/dimming. Curtain control: opening/closing
● Can send numerical values: scene call/brightness value/temperature value/illuminance value
● Can be connected to a self reset switch to control the KNX system

Dimmer module KTE45BD

New
4-way thyristor dimming driver
● 4-channel thyristor dimming driver, with a maximum load of 500w per channel, using cutting-edge bidirectional thyristor dimming
● Can be used for incandescent lamps, low-voltage halogen lamps, and tube lamps/LED lamps with electronic adapters with thyristor input
● Adjustable dimming speed, opening time, with scene function, each channel can independently achieve switch control and dimming control

Dimmer module KTE41TD

New
4-way thyristor dimming driver
● 4-channel thyristor dimming driver, with a maximum load of 1000w per channel, using cutting-edge bidirectional thyristor dimming
● Can be used for incandescent lamps, low-voltage halogen lamps, and tube lamps/LED lamps with electronic adapters with thyristor input
● Adjustable dimming speed, opening time, with scene function, each channel can independently achieve switch control and dimming control

Dimming module KTE4110D

New
4-way 0/1-10V dimming driver
● 4-way 0/1-10V dimming driver with relay on/off function
● Support dimming transformers that match the Current Source/Current Sink module
● Manually control the opening/closing/dimming of each circuit
● Support relative dimming command (4 bits)
● Support absolute dimming command (1 byte)
● Scene function dimming speed can be set
● The gradient speed of the switch can be set and the brightness can be set to start
● 24V auxiliary power supply required

KNX Switch module KTE04R-10K KTE04R-16K

New
4-way 10A switch driver/4-way 16A switch driver
● Electronic button switch driver
● Having scene functionality
● Each circuit has an independent status display and individual parameter settings
● After the KNX bus is powered off, manual control can still be performed
● Can be applied to lighting, underfloor heating (open and closed), and dry contact signal control
● 24V auxiliary power supply required

KNX switch module KTE04R-16S

New
4-way 16A switch driver
● Mechanical toggle switch driver, 4-way 16A
● After a power outage or malfunction on the KNX bus, it can still maintain its current state
● After the KNX bus is powered off, manual control can still be performed with scene functionality
● Can be applied to lighting, underfloor heating (open and closed), and dry contact signal control

KNX switch module KTE04R-20S

New
4-way 20A switch driver
● Mechanical toggle switch driver, 4-way 20A
● After a power outage or malfunction on the KNX bus, it can still maintain its current state
● After the KNX bus is powered off, manual control can still be performed
● Having scene functionality
● Can be applied to lighting, underfloor heating (open and closed), and dry contact signal control

KNX switch module KTE04R-20SA

New
4-way 20A switch driver With current detection function
● Mechanical toggle switch driver, 4-way 20A
● Each circuit can detect the actual current magnitude
● After a power outage or malfunction on the KNX bus, it can still maintain its current state
● After the KNX bus is powered off, manual control can still be performed
● Having scene functionality
● Can be applied to lighting, underfloor heating (open and closed), and dry contact signal control

KNX Switch module KTE08R-10K KTE08R-16K

New
8-way 10A switch driver/8-way 16A switch driver
● Electronic button switch driver
● Having scene functionality
● Each circuit has an independent status display and individual parameter settings
● After the KNX bus is powered off, manual control can still be performed
● 24V auxiliary power supply required
● Can be applied to lighting, underfloor heating (open and closed), and dry contact signal control

KNX switch module KTE08R-16S

New
8-way 16A switch driver
● Mechanical toggle switch driver, 8-way 16A
● After a power outage or malfunction on the KNX bus, it can still maintain its current state
● After the KNX bus is powered off, manual control can still be performed with scene functionality
● Can be applied to lighting, underfloor heating (open and closed), and dry contact signal control

KNX switch module KTE08R-20S

New
8-way 20A switch driver
● Mechanical toggle switch driver, 8-way 20A
● After a power outage or malfunction on the KNX bus, it can still maintain its current state
● After the KNX bus is powered off, manual control can still be performed
● Having scene functionality
● Can be applied to lighting, underfloor heating (open and closed), and dry contact signal control

KNX switch module KTE08R-20SA

New
8-way 20A switch driver With current detection function
● Mechanical toggle switch driver, 8-way 20A
● Each circuit can detect the actual current magnitude
● After a power outage or malfunction on the KNX bus, it can still maintain its current state
● After the KNX bus is powered off, manual control can still be performed
● Having scene functionality
● Can be applied to lighting, underfloor heating (open and closed), and dry contact signal control

KNX Switch module KTE12R-10K KTE12R-16K

New
12-way 10A switch driver/12-way 16A switch driver
● Electronic button switch driver
● Having scene functionality
● Each circuit has an independent status display and individual parameter settings
● After the KNX bus is powered off, manual control can still be performed
● 24V auxiliary power supply required
● Can be applied to lighting, underfloor heating (open and closed), and dry contact signal control

KNX switch module KTE12R-16S

New
12-way 16A switch driver
● Mechanical toggle switch driver, 12-way 16A
● After a power outage or malfunction on the KNX bus, it can still maintain its current state
● After the KNX bus is powered off, manual control can still be performed with scene functionality
● Can be applied to lighting, underfloor heating (open and closed), and dry contact signal control

KNX switch module KTE12R-20S

New
12-way 20A switch driver
● Mechanical toggle switch driver, 12-way 20A
● After a power outage or malfunction on the KNX bus, it can still maintain its current state
● After the KNX bus is powered off, manual control can still be performed
● Having scene functionality
● Can be applied to lighting, underfloor heating (open and closed), and dry contact signal control

KNX switch module KTE12R-20SA

New
12-way 20A switch driver With current detection function
● Mechanical toggle switch driver, 12-way 20A
● Each circuit can detect the actual current magnitude
● After a power outage or malfunction on the KNX bus, it can still maintain its current state
● After the KNX bus is powered off, manual control can still be performed
● Having scene functionality
● Can be applied to lighting, underfloor heating (open and closed), and dry contact signal control

Host accessories K-TAP

● When used with a host or TSE100, it can connect to graffiti wireless devices

KAC008

New
KAC air conditioning directly connected to the main unit
● 1 HBS interface, 1 485 interface, 1 232 interface, 1 reusable network interface
● 1 KNX interface, logic control, voice control, remote control, visualization app
● Supported brands: Daikin/Toshiba/Mitsubishi Electric/Hitachi/Hisense/York/Panasonic/Samsung/Mitsubishi Heavy Industries/Midea/Carrier
● 9-30V auxiliary power supply required

KAC005

New
KAC air conditioning directly connected to the main unit
● 1 HBS interface, 1 reusable network interface, 1 KNX interface
● Logic control, voice control, remote control, visualization app
● Supported brands: Daikin/Toshiba/Mitsubishi Electric/Hitachi/Hisense/York/Panasonic/Samsung/Mitsubishi Heavy Industries/Midea/Carrier
● 9-30V auxiliary power supply required

KAC Gateway KAC001

New
KAC air conditioning direct connection gateway
● 1 HBS interface, 1 reusable network interface
● All mainstream brand central air conditioners can be directly controlled through RS485/Modbus RTU
● Supported brands: Daikin/Toshiba/Mitsubishi Electric/Hitachi/Hisense/York/Panasonic/Samsung/Mitsubishi Heavy Industries/Midea/Carrier
● 9-30V auxiliary power supply required

KTE4TS-M

● M系列，4键 KNX智能按键面板(塑料/金属)
● KNX+辅助供电(24V宽压)
● 开关、调光、窗帘、场景、双通道控制
● 操作指示或回路状态指示
● 自带ToF人体接近背光感应
● 可选配按键震动功能

Fan coil module KTE4F

New
Four pipe fan coil drive
● Using KNX bus for power supply
● Can turn on/off the "automatic control" function
● Support cold and frost protection
● Automatically calculate temperature difference based on acceptable ambient temperature and set temperature
● Can automatically control valve opening/closing based on temperature difference
● Can automatically control wind speed based on temperature difference, and can set the temperature difference for automatic operation of wind speed
● The wind speed switching time can be set
● Can set the initial wind speed when turning on the fan coil unit
● The minimum operating time for the initial wind speed can be set to ensure the torque of the fan
● Customizable wind speed operation sending values
● Supports three-speed interlocking switching for low/medium/high wind speeds
● Support interlocking switching between cold and hot valves
● Intelligent control compatible with two pipe and four pipe air duct systems

Curtain module KTE2UPC

New
2-way curtain driver
● 2-way curtain driver, dedicated dry contact input motor
● Suitable for passive dry contact curtain motor drive
● Can achieve curtain opening/closing/stopping, with status feedback function
● Dual channel design, suitable for most applications of gauze curtains and fabric curtains
● The interval between opening and closing curtains can be set to maximize the protection of the curtain motor
● The curtain travel opening time can be set with scene function, and each channel supports up to 8 sets of scene definitions
● With centralized control function and compact size, it can be embedded and installed in the 80/86 bottom box or the curtain box next to the curtains

Host accessories KCMAQS-T7

New
Air quality sensor
● Can detect temperature, humidity PM1.0、PM2.5、PM10、 Formaldehyde, CO2, and TVOC
● Supports standard Modbus protocol
● 24V auxiliary power supply required

Host accessories KCM6S8IO

New
Integrated expansion module
● 6-way 10A relay output, 8-way DC5V output, 8-way passive dry contact input
● Supports standard Modbus protocol
● 24V auxiliary power supply required

KNX switch module KTE110/210/310MS

New
1/2/3 concealed opening and closing modules
● Embedded input/output small module, 4 DI inputs, 4 DO outputs, 1-3 10A relay outputs
● Input port for light control: on/off/dimming
● Input port for curtain control: run/stop
● Input port can send numerical values: scene call/brightness value/temperature value/illuminance value

KAC Gateway KAC011

New
KAC air conditioning direct connection gateway
● 1 HBS interface, 1 reusable network interface, supporting 16 indoor units in a single air conditioning system
● All mainstream brand central air conditioners can be directly controlled through RS485/Modbus RTU
● Directly connected to the outdoor/indoor unit of the central air conditioning system
● Supported brands: Daikin/Toshiba/Mitsubishi Electric/Hitachi/Hisense/York/Panasonic/Samsung/Mitsubishi Heavy Industries/Midea/Carrier
● 9-30V auxiliary power supply required

Y series KTE8TS-YK

● Y series, 8-key KNX intelligent button panel
● Material: Plastic
● Single KNX bus power supply
● Switch, dimming, curtains, scene, dual channel control
● Operation indication or circuit status indication
● (K) For optional relays, up to three channels are available

Y series KTE8TS-Y

● Y series, 8-key KNX intelligent button panel
● Material: Plastic
● Single KNX bus power supply
● Switch, dimming, curtains, scene, dual channel control
● Operation indication or circuit status indication

Y series KTE4TS-YK

● Y series, 4-key KNX intelligent button panel
● Material: Plastic
● Single KNX bus power supply
● Switch, dimming, curtains, scene, dual channel control
● Operation indication or circuit status indication
● (K) For optional relays, up to three channels are available

Y series KTE4TS-Y

● Y series, 4-key KNX intelligent button panel
● Material: Plastic
● Single KNX bus power supply
● Switch, dimming, curtains, scene, dual channel control
● Operation indication or circuit status indication

KTP100L

New
10 inch multifunctional touch screen
● Ultra thin 10 inch capacitive LCD touch screen with KNX interface
● Resolution 1280x800
● Built in network service, configuration and programming can be completed using a browser
● 9-30V auxiliary power supply required

KTP70L

New
7-inch multifunctional touch screen
● Ultra thin 7-inch capacitive LCD touch screen with KNX interface
● Resolution 1024x600
● Built in network service, configuration and programming can be completed using a browser
● 9-30V auxiliary power supply required

KTP40L

New
4-inch multifunctional touch screen
● Ultra thin 4-inch capacitive LCD touch screen with KNX interface
● Resolution 720x720
● Built in network service, configuration and programming can be completed using a browser
● Multiple themes to choose from (supports theme customization services)
● 9-30V auxiliary power supply required

KTE2TS-D

● D系列，2键智能按键面板
● 材质：塑料
● 人体感应背光指示灯
● 需24V 辅助供电

KTE4TS-D

● D系列，4键智能按键面板
● 材质：塑料
● 人体感应背光指示灯
● 需24V 辅助供电

KTE6TS-D

● D系列，6键智能按键面板
● 材质：塑料
● 人体感应背光指示灯
● 需24V 辅助供电

KTE8TS-D

● D系列，8键智能按键面板
● 材质：塑料
● 人体感应背光指示灯
● 需24V 辅助供电

KTEX8W-D

● D系列，全屏触摸三合一温控面板
● 内置温度传感器
● 需24V 辅助供电

KTE2TS-S

● S系列，2键智能按键面板
● 材质：金属
● 人体感应背光指示灯
● 需24V 辅助供电

KTE4TS-S

● S系列，4键智能按键面板
● 材质：金属
● 人体感应背光指示灯
● 需24V 辅助供电

KTE6TS-S

● S系列，6键智能按键面板
● 材质：金属
● 人体感应背光指示灯
● 需24V 辅助供电

KTEX8W-S

● S系列， KNX 三合一温控面板
● 材质：金属
● 内置温度传感器
● 需24V 辅助供电

KTE4TS-F

● F系列，4键智能按键面板(塑料/金属)
● KNX+辅助供电(24V宽压)
● 开关、调光、窗帘、场景、双通道等
● 操作指示或回路状态指示
● 人体背光感应

KTE4TS-FK

● F系列，4键智能按键面板(塑料/金属)
● KNX+辅助供电(24V宽压)
● 开关、调光、窗帘、场景、双通道等
● 操作指示或回路状态指示
● 人体背光感应
● (K)为可选配继电器，最多三路

KTE8TS-F

● F系列，8键 智能按键面板(塑料/金属)
● KNX+辅助供电(24V宽压)
● 开关、调光、窗帘、场景、双通道等
● 操作指示或回路状态指示
● 人体背光感应

KTE8TS-FK

● F系列，8键智能按键面板(塑料/金属)
● KNX+辅助供电(24V宽压)
● 开关、调光、窗帘、场景、双通道等
● 操作指示或回路状态指示
● 人体背光感应
● (K)为可选配继电器，最多三路

KTEX8W-F

● F系列，KNX 三合一温控面板(塑料/金属)
● KNX+辅助供电(24V宽压)
● 内置高精度温湿度度传感器
● 可同时控制空调/地暖/新风
● 可显示环境温度/湿度/PM2.5/CO2/TVOC等

KTE4TS-MK

● M系列，4键 KNX智能按键面板(塑料/金属)
● KNX+辅助供电(24V宽压)
● 开关、调光、窗帘、场景、双通道控制
● 操作指示或回路状态指示
● 自带ToF人体接近背光感应
● 可选配按键震动功能
● (K)为可选配继电器，最多三路

KTE8TS-M

● M系列，8键 KNX智能按键面板(塑料/金属)
● KNX+辅助供电(24V宽压)
● 开关、调光、窗帘、场景、双通道控制
● 操作指示或回路状态指示
● 自带ToF人体接近背光感应
● 可选配按键震动功能

KTE8TS-MK

● M系列，8键 KNX智能按键面板(塑料/金属)
● KNX+辅助供电(24V宽压)
● 开关、调光、窗帘、场景、双通道控制
● 操作指示或回路状态指示
● 自带ToF人体接近背光感应
● 可选配按键震动功能
● (K)为可选配继电器，最多三路

KTEX8W-M

● M系列， KNX 三合一温控面板(塑料/金属)
● KNX+辅助供电(24V宽压)
● 内置高精度温湿度度传感器
● 可同时控制空调/地暖/新风
● 可显示环境温度/湿度/PM2.5/CO2/TVOC等

K-P

New
配搭任意KNX主机使用,连接30V/1A直流电源后, 主机的红黑端子可以为KNX总线系统提供标准的电源输出,500mA

KCM6S8IO

New
综合扩展模块
● 1XRS485
● 6路10A继电器输出，8路DC5V输出
● 8路无源干接点输入

传感器 KTE2MLS-W

人体感应器，侧墙安装，可调节亮度感应值和延迟时间
